Main | |
| Range of product | Easy Harmony XA2 |

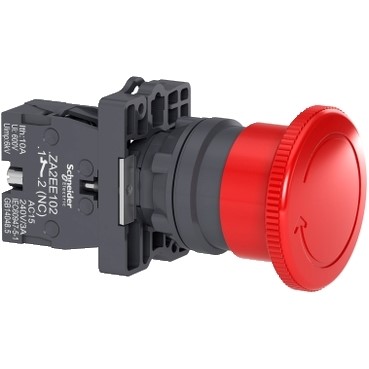

| Product or component type | Complete emergency switching off push-button |
| Device short name | XA2 |
| Bezel material | Plastic |
| Mounting diameter | 22.5 mm |
Complementary | |
| Operating position | Any position |
| Device mounting | Fixing hole – diameter: 22 mm |
| Fixing center | >= 30 x 40 mm (panel) – thickness: 1…5 mm |
| Shape of signaling unit head | Round |
| Type of operator | Turn to release |
| Reset | Turn to release |
| Operator profile | Red mushroom Ø 40 mm |
| Cap/operator or lens colour | Red |
| Contacts type and composition | 1 NC |
| Contact operation | Slow-break |
| Positive opening | With NC contact |
| Mechanical durability | 100000 cycles |
| Connections – terminals | Screw clamp terminal, <= 2 x 1.5 mm² Screw clamp terminal, <= 1 x 2.5 mm² Screw clamp terminal, >= 1 x 0.5 mm² Faston terminals, connection size: 6.3 mm |
| Tightening torque | 0.8 N.m |
| Short-circuit protection | 10 A gL fuse conforming to IEC 60269-1 |
| [Ui] rated insulation voltage | 600 V conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600 0.27 A at 250 V, DC-13, Q600 |
| Electrical durability | 500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 |
| Electrical reliability | Λ < 10exp(-8) at 24 V |
| Height | 30 mm |
| Width | 42 mm |
| Depth | 74.2 mm |
| Net weight | 0.058 kg |
| Type of operator | Mechanical latching |
Environment | |
| Protective treatment | TC |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -25…55 °C |
| Overvoltage category | Class I conforming to IEC 536 |
| IP degree of protection | IP65 conforming to IEC 60068-2-27 |
| IK degree of protection | IK03 |
| Standards | IEC 60947-1 GB 14048.1 GB 14048.5 IEC 60947-5-1 IEC 60529 |
| Product certifications | CCC CE |
| Vibration resistance | 10 gn (f= 40…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 70 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.000 cm |
| Package 1 Width | 5.000 cm |
| Package 1 Length | 7.000 cm |
| Package 1 Weight | 57.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 70 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.305 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 1120 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 60.000 cm |
| Package 3 Weight | 76.880 kg |
