Description
Specifications
Main | |
| Range | TeSys |
| product name | TeSys VARIO |
| Device short name | VCF |

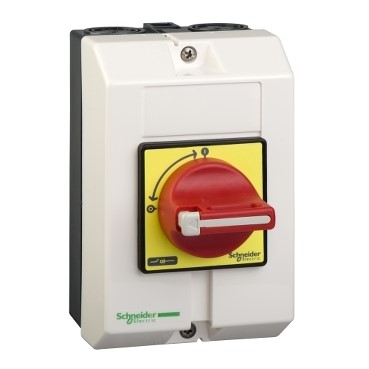

| Product or component type | Enclosed emergency stop switch disconnector |
| Performance level | High performance |
| Poles description | 3P |
| Control type | Rotary handle |
| Handle colour | Red |
| Handle front plate colour | Yellow |
| Rotary handle padlocking | 1 to 3 padlocks 4…8 mm |
Complementary | |
| Marking | 0 – 1 |
| [Ue] rated operational voltage | 690 V AC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ithe] conventional enclosed thermal current | 32 A |
| [Ie] rated operational current | 29 A (AC-23A) at 400 V |
| Rated operational power in W | 15 kW at 400 V (AC-23) 11 kW at 400 V (AC-3) |
| Intermittent duty class | 30 |
| Making capacity ( I rms) | 400 A at 400 V AC-21A 400 A at 400 V AC-22A 400 A at 400 V AC-23A |
| [Icm] rated short-circuit making capacity | 1 kA at 400 V at Ipeak |
| [Icw] rated short-time withstand Rms current | 480 A at 400 V duration: 1 s |
| Rated conditional short-circuit current | 10 kA at 400 V – associated fuse 50 A aM 10 kA at 400 V – associated fuse 50 A gG |
| Breaking capacity | 320 A at 400 V (AC-21A) 320 A at 400 V (AC-22A) 320 A at 400 V (AC-23A) |
| Mechanical durability | 100000 cycles |
| Electrical durability | 100000 cycles AC-21 30000 cycles DC-1…5 |
| Environmental characteristic | Standard environment |
| Suitability for isolation | Yes |
| Connections – terminals | Screw clamp terminals10 mm² – solid Screw clamp terminals6 mm² – flexible – with cable end |
| Tightening torque | 2.1 N.m – on screw clamp terminals |
| Fire resistance | 960 °C conforming to IEC 60595-2-1 |
| handle front plate dimension | 60 x 60 mm |
| Height | 146 mm |
| Width | 90 mm |
| Depth | 131 mm |
| Net weight | 0.5 kg |
Environment | |
| Standards | IEC 60204 IEC 60947-4-1 |
| Protective treatment | TC |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Mechanical robustness | Vibrations 10…150 Hz (1 gn) conforming to IEC 60068-2-6 Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27 |
| Ambient air temperature for operation | -20…50 °C |
Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 14.500 cm |
| Package 1 Width | 11.300 cm |
| Package 1 Length | 15.800 cm |
| Package 1 Weight | 473.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 7 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.764 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 56 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 40.244 kg |
Contractual warranty | |
| Warranty | 18 months |
