Description
Specifications
Main | |
| Range of product | PRD1 Master |
| range of product | Acti9 |
| product name | Acti9 PRD1 Master |
| Product or component type | Surge arrester with pluggable cartridge |
| Device short name | PRD1 Master |
| Device application | Distribution |
| Standards | EN 61643-11:2012 IEC 61643-11:2011 |
| Product certifications | CE |
| Quality labels | KEMA-KEUR |
| Poles description | 3P + N |
| Remote signalling | With |
| Signal contacts composition | 1 SD (1 C/O) |
| Surge arrester type | Electrical distribution network |
| Earthing system | TT TN-C |
Complementary | |
| Surge arrester class type | Type 1 |
| Surge arrester technology | Spark gap |
| [Ue] rated operational voltage | 230/400 V AC (+/- 10 %) at 50/60 Hz |
| Nominal discharge current | Common mode: 100 kA (N/PE) Differential mode: 25 kA (L/N) |
| [Iimp] impulse current | Common mode: 100 kA N/PE 50 A.s Differential mode: 25 kA L/N 12.5 A.s |
| [Uc] maximum continuous operating voltage | Differential mode: 350 V L/N Common mode: 350 V N/PE |
| Maximum [Up] voltage protection level | Common mode <1.5 kV type 2 N/PE Differential mode <1.5 kV type 2 L/N |
| [Ifi] follow current | 0.1 kA common mode N/PE 50 kA differential mode L/N |
| Short-circuit withstand | 50 kA |
| Disconnector device type | Associated fuse gG 315 A standard Associated circuit breaker Compact NSX100F 100 A curve C – Icu 36 kA Associated circuit breaker Compact NSX100N 100 A curve C – Icu 50 kA |
| Signalling circuit voltage | 1 A/250 V AC 50/60 Hz |
| Mounting mode | Clip-on (DIN rail) |
| 9 mm pitches | 16 |
| Height | 90 mm |
| Width | 142.8 mm |
| Depth | 70 mm |
| Net weight | 1.31 kg |
| Colour | Anthracite grey (RAL 7016) |
| Material | PBT (polybutylene terephthalate) |
| Connections – terminals | Tunnel type terminal (downside) 2.5…35 mm² Tunnel type terminal (upside) 2.5…35 mm² |
| Tightening torque | 4.5 N.m |
| Impulse current | 25 kA |
| Compatibility code | PRD1_Master |
| Market segment | Small commercial |
Environment | |
| IK degree of protection | IK05 conforming to IEC 62262 |
| Relative humidity | 5…90 % |
| Operating altitude | 2000 m |
| Ambient air temperature for operation | -25…60 °C |
| Ambient air temperature for storage | -40…80 °C |
Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.5 cm |
| Package 1 Width | 14 cm |
| Package 1 Length | 17.5 cm |
| Package 1 Weight | 1.563 kg |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 7 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 11.562 kg |
Contractual warranty | |
| Warranty | 18 months |

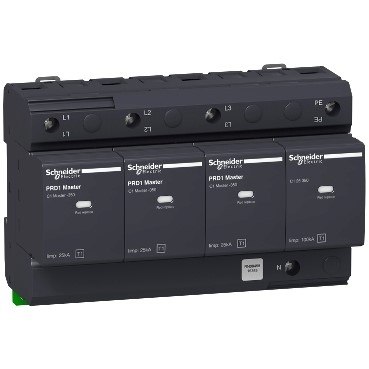

PRD1 Master modular surge arrester, 3 poles + N, 350V, with remote transfer
