Specifications
Main | |
| Range | TeSys |

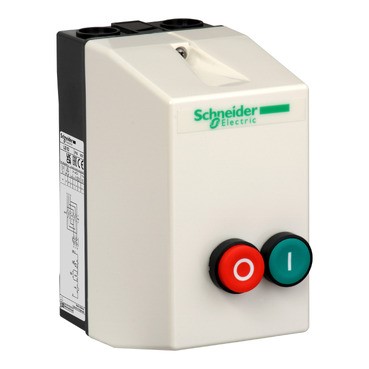

| product name | TeSys LE |
| Device short name | LE1D |
| Product or component type | Enclosed DOL starter |
| Device application | Standard |
| Utilisation category | AC-3 |
| Device composition | Thermal overload relay ordered separately Contactor |
| Control type | Push-button start green I Push-button stop/reset red O |
Complementary | |
| Motor power kW | 10 kW at 500 V AC 50/60 Hz 10 kW at 660/690 V AC 50/60 Hz 4 kW at 220/230 V AC 50/60 Hz 9 kW at 415 V AC 50/60 Hz 9 kW at 440 V AC 50/60 Hz 7.5 kW at 380/400 V AC 50/60 Hz |
| [Ith] Conventional free air thermal current | 17 A |
| [Uc] control circuit voltage | 220 V AC 50/60 Hz |
| Cable entry number | 2 ISO20 top 2 ISO25 top 2 ISO20 bottom 2 ISO25 bottom |
| Width | 101 mm |
| Height | 201 mm |
| Depth | 153.5 mm |
| Net weight | 1.015 kg |
Environment | |
| Material | Polycarbonate |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 60529 |
| Standards | IEC 60947-4-1 |
| Ambient air temperature for operation | -5…40 °C |
| Environmental characteristic | Standard environment |
| Product certifications | UKCA |
Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 19.500 cm |
| Package 1 Width | 16.000 cm |
| Package 1 Length | 24.800 cm |
| Package 1 Weight | 1.186 kg |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 22 |
| Package 2 Height | 75.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 38.630 kg |
Contractual warranty | |
| Warranty | 18 months |
