Specifications
Main | |
| Range | TeSys |

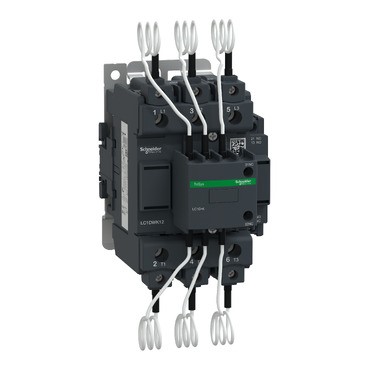

| product name | TeSys LC1D.K TeSys Deca |
| Product or component type | Capacitor duty contactor |
| Device short name | LC1DWK |
| Device application | Control |
| Contactor application | Power factor correction |
| Utilisation category | AC-6b |
| Poles description | 3P |
| power pole contact composition | 3 NO |
| [Ue] rated operational voltage | Power circuit: 690 V AC 50/60 Hz |
| Reactive power rating | 35 kvar at 230 V AC 50 Hz 60 °C 63 kvar at 400 V AC 50 Hz 60 °C 67 kvar at 440 V AC 50 Hz 60 °C 104 kvar at 690 V AC 50 Hz 60 °C 30 kvar at 230 V AC 60 Hz 60 °C 60 kvar at 460 V AC 60 Hz 60 °C 80 kvar at 575 V AC 60 Hz 60 °C |
| Control circuit type | AC at 50/60 Hz |
| [Uc] control circuit voltage | 220 V AC 50/60 Hz |
| Auxiliary contact composition | 1 NO + 2 NC instantaneous |
| Electrical durability | 300000 cycles at Ue 400 V 200000 cycles at Ue 690 V |
| Mounting support | DIN rail Plate |
| Standards | EN/IEC 60947-1 EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 |
| Product certifications | IECEE CB Scheme UL CSA UKCA |
| Connections – terminals | Control circuit: screw clamp terminals 1 1…4 mm² – cable stiffness: solid Control circuit: screw clamp terminals 2 1…4 mm² – cable stiffness: solid Control circuit: screw clamp terminals 1 1…4 mm² – cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1…4 mm² – cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1…4 mm² – cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 1…2.5 mm² – cable stiffness: flexible with cable end Power circuit: connector 1 4…50 mm² – cable stiffness: solid Power circuit: connector 2 4…25 mm² – cable stiffness: solid Power circuit: connector 1 4…50 mm² – cable stiffness: flexible without cable end Power circuit: connector 2 4…25 mm² – cable stiffness: flexible without cable end Power circuit: connector 1 4…50 mm² – cable stiffness: flexible with cable end Power circuit: connector 2 4…16 mm² – cable stiffness: flexible with cable end |
| Tightening torque | Power circuit: 9 N.m – on connector Control circuit: 1.7 N.m – on screw clamp terminals |
| Maximum operating rate | 100 cyc/h |
Complementary | |
| Auxiliary contacts type | Type mechanically linked 1 NO + 2 NC conforming to IEC 60947-5-1 |
Environment | |
| IP degree of protection | IP20 front face conforming to IEC 60529 |
| Ambient air temperature for operation | -5…60 °C |
| Ambient air temperature for storage | -60…80 °C |
| Operating altitude | 0…3000 m |
| Height | 180 mm |
| Width | 85 mm |
| Depth | 154 mm |
| Net weight | 1.65 kg |
Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 19.000 cm |
| Package 1 Width | 13.200 cm |
| Package 1 Length | 17.000 cm |
| Package 1 Weight | 1.786 kg |
| Unit Type of Package 2 | S06 |
| Number of Units in Package 2 | 48 |
| Package 2 Height | 75.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 95.368 kg |
Contractual warranty | |
| Warranty | 18 months |
