KB34S_WE_G2 Vivace -2 way switch 16 AX 250 V -1 module- White

Original price was: ₦20,330.00.Current price is: ₦17,500.00.

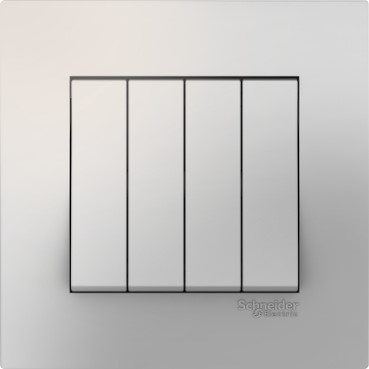

This Schneider Electric Vivace 2-way switch is with a power supply application.” “A rocker/button is used for operating.” “The connection of the device is made with screw terminals.” “The device is of 4 gangs and 4 rockers.” “Its Ue-rated operating voltage is 250V and the rated current is 10AX.” “The frequency is 50/60Hz.” “This device enables flush mounting.” “The dimension of the product is (W) 86mm x (H) 86mm x (D) 37mm. The Embedded depth is 25mm.” “The color of this device is White with a Glossy finish. It is made of polycarbonate material.” “The Operating temperature is from -5°C up to +40°C. It reaches an IP20 degree of protection. The Relative Humidity is from 0% to 95%.” “The Vivace switch and socket set is a robustly constructed range built to perfectly complement the modern lifestyle.” “A slim, trim profile, pleasing to the eye, clean and refined Vivace switch and socket with geometrically balanced design, are available in white and aluminium silver colors.” “This device is compliant with IEC 60669 standard.

1000 in stock
Add to Wishlist
Add to Wishlist

Description

Specifications

Main

RangeVivace
Product or component typeSwitch
Device short nameKB34
Device applicationControl switch
Number of rocker4
Additional switch applicationOn/off switching
Switch function2-way
Colour tintWhite



Complementary

Technology typeElectromechanical
Device presentationComplete product
ActuatorRocker
Number of gangs4 gangs
Colour tintWhite
MaterialPolycarbonate: grid plate
Polycarbonate: surround
Nylon: base
Polycarbonate: dolly
Nylon: actuator
Silver plated copper: bridge
Brass: terminal cover
Surface finishGlossy
surface treatmentUntreated
[Ue] rated operational voltage220…250 V
Type of packingPlastic bag
Network typeAC
Quantity per set1
Rated current10 AX
Sale per indivisible quantity1
Projecting depth8 mm
Device mountingFlush
Mounting supportWall mounted
Fixing modeBy screw M3.5
Fixing center60.3 mm
Connections – terminalsScrew terminal
Embedding depth25 mm
Number of terminals12
Rated current10 AX at 250 V AC, inductive
10 AX at 250 V AC, resistive
[Ue] rated operational voltage250 V AC
Network frequency50/60 Hz
Contacts materialBrass and phosphor bronze
Connections – terminals12 screw terminals
Terminal identifierL1
COM
L2
Tightening torque0.4 N.m
Clamping connection capacity<= 2.5 mm² for rigid or stranded cable(s)
Wire stripping length12 mm
Dielectric strength2000 V
Minimum load breaking capacity200 operations 1.25 In and 1.1 Un
Width86 mm
Height86 mm
Depth37 mm
Net weight0.0829 kg



Environment

StandardsIEC 60669
Product certificationsSNI
SIRIM
Ambient air temperature for operation-5…40 °C
Relative humidity0…95 %
Operating altitude0…2000 m
Environmental characteristicIndoor use
IP degree of protectionIP20



Packing Units

Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height8.6 cm
Package 1 Width2.4 cm
Package 1 Length8.6 cm
Package 1 Weight85 g



Contractual warranty

Warranty18 months
