Description
Specifications
Main | |
| Range | Vivace |
| Device short name | KB31 |

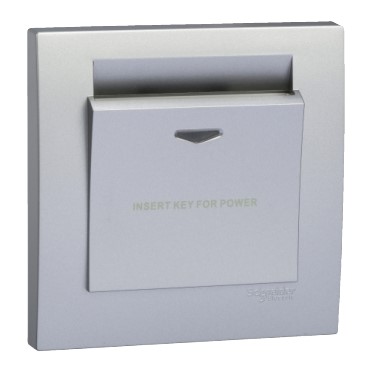

| Product or component type | Keycard switch |
| Device application | Hotel |
| Device presentation | Complete mechanism |
| Switch function | Hotel card switch Hotel card switch Hotel card switch Hotel card switch Hotel card switch |
| Colour tint | Aluminium silver |
Complementary | |
| Technology type | Electromechanical |
| Number of gangs | 1 gang |
| Colour tint | Aluminium silver |
| Material | Polycarbonate: grid plate Polycarbonate: surround Polycarbonate: base |
| Projecting depth | 8 mm |
| Device mounting | Flush |
| Switch application | Central off/on |
| Mounting support | Wall mounted |
| Fixing mode | By screw M3.5 |
| Fixing center | 60.3 mm |
| Embedding depth | 30 mm |
| [Ue] rated operational voltage | 220…240 V |
| Rated current | 16 A at 220…240 V AC, resistive load |
| Network frequency | 50/60 Hz |
| Network type | AC |
| Rated current | 16 A |
| Connections – terminals | Pillar terminal |
| Terminal identifier | L N |
| Tightening torque | 0.4 N.m |
| Clamping connection capacity | 2 x 2.5…2 x 4 mm² |
| surface treatment | Painted |
| Width | 86 mm |
| Surface finish | Matt |
| Height | 86 mm |
| Depth | 35 mm |
| Number of terminals | 3 |
| Clamping connection capacity | 2 x 2.5…2 x 4 mm² for rigid or stranded cable(s) |
Environment | |
| Standards | IEC 60669-2-1 |
| Ambient air temperature for operation | -5…40 °C |
| Ambient air temperature for storage | 0…60 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0…2000 m |
| Environmental characteristic | Indoor use |
| IP degree of protection | IP20 |
Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4 cm |
| Package 1 Width | 8.6 cm |
| Package 1 Length | 8.6 cm |
| Package 1 Weight | 169.47 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 15 cm |
| Package 2 Width | 19 cm |
| Package 2 Length | 6 cm |
| Package 2 Weight | 1.017 kg |
| Unit Type of Package 3 | CAR |
| Number of Units in Package 3 | 60 |
| Package 3 Height | 21 cm |
| Package 3 Width | 32.5 cm |
| Package 3 Length | 50 cm |
| Package 3 Weight | 10168.2 g |
Contractual warranty | |
| Warranty | 18 months |
