KB31EKT Hotel Key Card Switch

Original price was: ₦52,840.00.Current price is: ₦48,505.00.

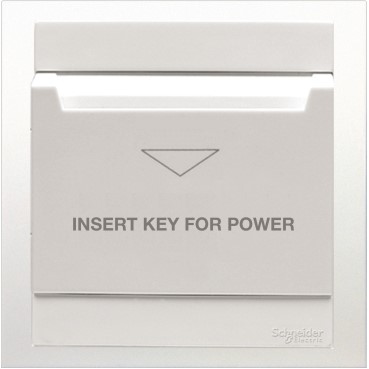

Vivace Keycard switch by Schneider electric is a complete mechanism operated by means of hotel card.” “The fixing mode of the device is with screws.” “The device is with 1 gang.” “Its Ue rated operational voltage 250VAC at 50/60Hz. Its rated current is 16A.” “This device is designed to be flush mounted.” “The dimensions of the product is (W) 86mm x (H) 86mm x (D) 35mm.” “It is made of Polycarbonate (PC). The color of the product is white with glossy surface finish.” “The Ambient air temperature for operation is from -5°C up to +40°C and the relative humidity is from 0% to 95%. It reaches an IP20 degree of protection.” “The Vivace switch and socket set is a robustly constructed range built to perfectly complement the modern lifestyle.” “A slim, trim profile, pleasing to the eye, clean and refined Vivace switch and socket with geometrically balanced design, are available in white and aluminium silver colors.” “This device is compliant with the IEC 60669-2-1 standard.

1000 in stock
Add to Wishlist
Add to Wishlist
Category: Tag: Brand:

Description

Specifications

Main

RangeVivace
Device short nameKB31
Product or component typeKeycard switch
Device applicationHotel
Device presentationComplete product
Switch functionHotel card switch
Hotel card switch
Hotel card switch
Hotel card switch
Hotel card switch
Colour tintWhite



Complementary

Technology typeElectromechanical
Number of gangs1 gang
Colour tintWhite
MaterialPolycarbonate: grid plate
Polycarbonate: surround
Polycarbonate: base
Projecting depth8 mm
Device mountingFlush
Switch applicationCentral off/on
Mounting supportWall mounted
Fixing modeBy screw M3.5
Fixing center60.3 mm
Embedding depth30 mm
[Ue] rated operational voltage220…240 V
Rated current16 A at 220…240 V AC, resistive load
Network frequency50/60 Hz
Network typeAC
Rated current16 A
Connections – terminalsPillar terminal
Terminal identifierL
N
Tightening torque0.4 N.m
Clamping connection capacity2 x 2.5…2 x 4 mm²
surface treatmentUntreated
Width86 mm
Surface finishGlossy
Height86 mm
Depth35 mm
Number of terminals3
Clamping connection capacity2 x 2.5…2 x 4 mm² for rigid or stranded cable(s)



Environment

StandardsIEC 60669-2-1
Ambient air temperature for operation-5…40 °C
Ambient air temperature for storage0…60 °C
Relative humidity0…95 %
Operating altitude0…2000 m
Environmental characteristicIndoor use
IP degree of protectionIP20



Packing Units

Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Weight169.47 g



Contractual warranty

Warranty18 months
