Main | |
| range of product | Acti9 |

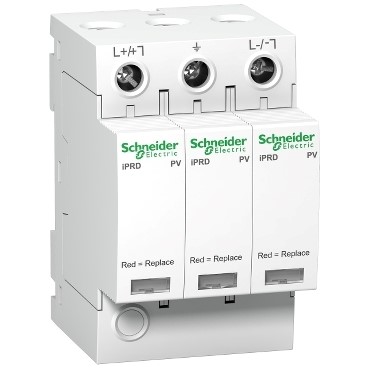

| product name | Acti9 iPRD PV-DC |
| Device short name | iPRD PV-DC |
| Product or component type | Surge arrester with pluggable cartridge |
| Poles description | 2P |
| Output type | Contact (volt-free) |
| Signal contacts composition | 1 SD (1 C/O) |
| Surge arrester type | Electrical distribution network |
| Uoc stc: Maximum open circuit voltage of PV generator in standard test condition | 833 V |
Complementary | |
| Surge arrester class type | Type 2 |
| Surge arrester technology | MOV |
| [Ue] rated operational voltage | 1000 V +/- 10 % DC |
| [In] nominal discharge current | 15 kA |
| [Imax] maximum discharge current | 40 kA |
| [Ucpv] maximum continuous operating voltage | Differential mode: 1000 V L+/L- Common mode: 1000 V L+/PE Common mode: 1000 V L-/PE |
| Maximum [Up] voltage protection level | Common mode <3.9 kV type 2 L+/PE Common mode <3.9 kV type 2 L-/PE Differential mode <3.9 kV type 2 L+/L- |
| Disconnector device type | Integrated disconnector |
| [Iscpv] short-circuit current rating | 200 A |
| Local signalling | White/red flag |
| Signalling circuit voltage | AC: 250 V 50/60 Hz |
| Signalling output current | 0.25 A |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| 9 mm pitches | 6 |
| Height | 85 mm |
| Width | 54 mm |
| Depth | 69 mm |
| Net weight | 400 g |
| Colour | White (RAL 9003) |
| Response time | <= 25 ns |
| Connections – terminals | Tunnel type terminal 2.5…25 mm² rigid Tunnel type terminal 2.5…16 mm² flexible Tunnel terminal 2.5…16 mm² flexible with ferrule |
| Wire stripping length | 14 mm |
| Tightening torque | 3.5 N.m |
Environment | |
| Standards | EN 50539-11:2013 UTE C 61740-51 |
| Product certifications | CE |
| IP degree of protection | IP40 on front face: IP20 on terminal: |
| IK degree of protection | IK03 |
| Relative humidity | 5…95 % |
| Operating altitude | 2000 m |
| Ambient air temperature for operation | -25…60 °C |
| Ambient air temperature for storage | -40…85 °C |
Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.700 cm |
| Package 1 Width | 6.300 cm |
| Package 1 Length | 9.200 cm |
| Package 1 Weight | 369.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 8.500 cm |
| Package 2 Width | 10.000 cm |
| Package 2 Length | 28.000 cm |
| Package 2 Weight | 1.540 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 36 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 14.453 kg |
Contractual warranty | |
| Warranty | 18 months |
