Description
Product characteristics

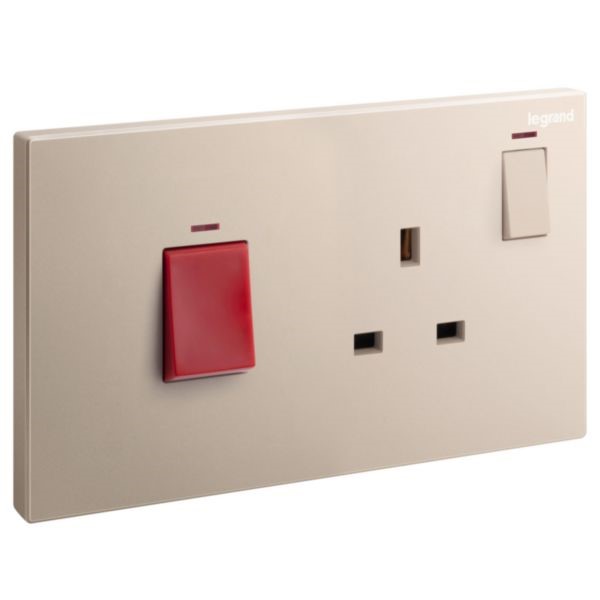

- British Standard 13A, 250V~ and 45A Switch
- Sold complete under one catalog number, ready to install.
- Screw terminals accept wires up to 10mm² for secure and enhanced contacts
- Marked terminals for easy identification
- Strip length indicator avoids waste of wires
Recommendation / Restriction
- Recommended inside use only
The product’s benefits
Installation
- Honeycomb design supporting frame for stability and rigidity
Usage
- Complies with British Standards certification for heavy loads. Fitted with safety shutters to maximize child protection
Advantages
- Equivalent aesthetic as all other functions
- Product delivered with paint and dust protection
- Delivered with screws for flush-mounting or surface-mounting boxes, plastic or metal
Technical characteristics
| Type of switch | Off switch |
| Type of socket outlet | British Standard |
| Number of socket outlets | 1 |
| Method of operation | Rocker/button |
| Mounting direction | Horizontal |
| With lighting | Yes |
| Mounting method | Flush-mounted |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Color | Other |
| Transparent | No |
| Suitable for degree of protection (IP) | IP20 |
| Nominal voltage | 250 V |
| Nominal current socket outlet | 13 A |
| Rated current | 45 A |
| Over-voltage protection | No |
| With miniature fuse | No |
| Number of active contacts (flat) | 2 |
| Min. depth of built-in installation box | 35 mm |
| Device width | 146 mm |
| Device height | 88 mm |
| Device depth | 34.6 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Built-in depth | 19.4 mm |
| Degree of impact strength (IK) | IK04 |
| Operating/setting temperature | -5-50 °C |
| Storage temperature | -10-70 °C |
| Voltage type | AC |
| Mandatory neutral | Yes |
| Terminal marking indication | Yes |
| Antimicrobial treatment | No |
| Connection type | Screwed terminal |
| Terminals capacity | 1-10 mm² |
| Cable section | 1-10 mm² |
| Label space/information surface | No |
| Fitted with USB plug | No |
