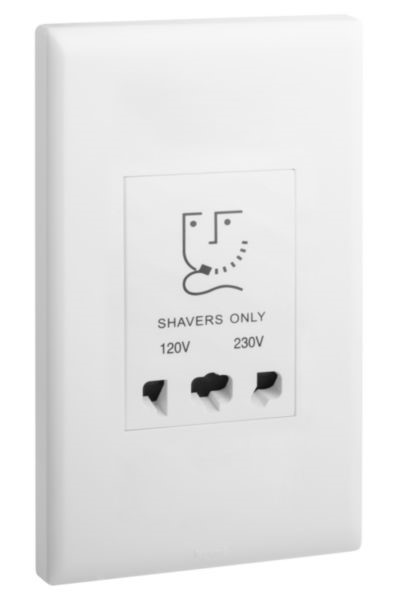

Description
Product characteristics
- 2P, 127V/250V (20VA)
- ELOE is sold as a complete set under one cat number
- Screw-type terminals for secured & enhanced contacts
- Marked terminals for easy identification
- Glossy white finish
Recommendation / Restriction
- Recommended inside use only
The product’s benefits
Installation
- Quick and Easy plate clipping system
Usage
- Fitted with safety shutters to maximize child protection
Advantages
- Delivered with its protective shell against paint and dust during the installation phase
- Delivered with screws for flush & surface boxes in both plastic and metal boxes
- A squarish shape designed with a full rocker plate aesthetic
Technical characteristics
| Assembly arrangement | Basic element with adapter plate |
| Mounting method | Other |
| With hinged lid | No |
| Voltage reversible | No |
| Nominal voltage low value | 120 V |
| Nominal voltage high value | 230 V |
| Rated output | 0.167 VA |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Surface protection | Other |
| Surface finishing | Glossy |
| Color | White |
| Transparent | No |
| Device width | 149.5 mm |
| Device height | 52.5 mm |
| Device depth | 41.5 mm |
| With built-in installation box | No |
| Min. depth of built-in installation box | 45 mm |
| Built-in depth | 41.5 mm |
| Degree of impact strength (IK) | IK04 |
| Degree of protection (IP) | IP20 |
| Operating/setting temperature | 0-35 °C |
| Storage temperature | -10-70 °C |
| Voltage type | AC |
| Frequency | 50-60 Hz |
| Terminal marking indication | Yes |
| Antimicrobial treatment | No |
| Connection type | Screwed terminal |
| Terminals capacity | 1-2.5 mm² |
| Cable nature for connection | Flexible or rigid |
| Label space/information surface | No |
