Description
Product characteristics

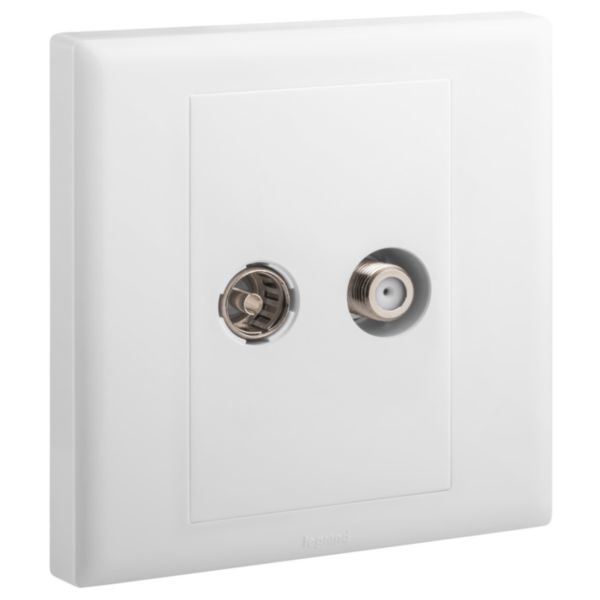

- Allows to connect conventional TV input and satellite connection.
- ELOE is sold as a complete set under one cat number
- LTE-protected class A level
- Attenuation loss 1,5 dB
- Glossy white finish
Recommendation / Restriction
- Looping connection unadapted. Recommended inside use only
The product’s benefits
Installation
- Visual check of the connection. Secured screw connection.
Usage
- Limited cable bend radius that lowers attenuation losses
Advantages
- Low attenuation socket
- Fully protected against EMC perturbances (=3G, 4G, 5G… risk of image pixelation)
- Asquarishh shape is designed with a full rocker plate aesthetic
Technical characteristics
| Model | End socket |
| Type of socket outlet | TV/SAT |
| DAB+ | No |
| Mounting method | Flush-mounted |
| Number of modules (module system) | 1 |
| Cover | Central cover plate |
| Number of outlets | 1 |
| Through loss at 860 MHz | 1 dB |
| Type of fastening | Mounting with screw |
| Color | White |
| RAL-number (similar) | 9003 |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Antimicrobial treatment | No |
| Degree of protection (IP) | IP20 |
| Degree of impact strength (IK) | IK04 |
| Device width | 86 mm |
| Device height | 86 mm |
| Device depth | 36.9 mm |
| Min. depth of built-in installation box | 27.4 mm |
| Operating/setting temperature | -5-50 °C |
| Storage temperature | -10-70 °C |
