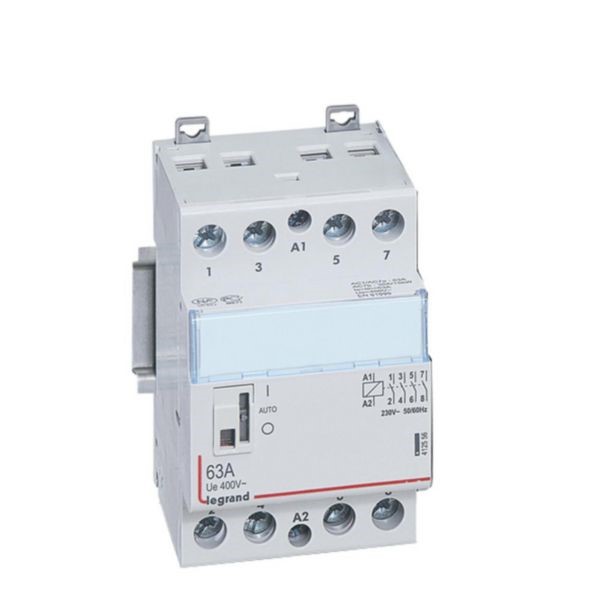

Description
Product characteristics
- Utilization category : AC7a or AC1 – 63A / AC7b or AC3 – 30A
- Can be equipped with auxiliaries reference 412431
- Conform to IEC/EN 61095
- 230V~ coil
- The handle can be accessed after removing the blanking plate.
Recommendation / Restriction
- This product should be installed in compliance with installation rules, preferably by a qualified electrician. Incorrect installation and/or incorrect use can lead to the risk of electric shock or fire. Before carrying out the installation, read the instructions and take account of the product’s specific mounting location. Do not open up, dismantle, alter, or modify the device except where specifically required to do so by the instructions. All Legrand products must be opened and repaired exclusively by personnel trained and approved by Legrand. Any unauthorized opening or repair completely cancels all liabilities and the rights to replacement and guarantees. Use only Legrand brand accessories.
The product’s benefits
Installation
- Easy integration: fitted with two DIN rail clamps, one top side, and one bottom side to ease the clipping. Allows the insertion of a prong busbar at the top side.
Usage
- Equipped with a front face handle to get the possibility to also control it on-site directly on the device itself (test and repair function). Permanent ON or OFF wihout automatic reset.Also Fitted with a label holder allowing a clear, visible and convenient identification of the circuit.
Technical characteristics
| Rated operating voltage | 400-400 V |
| Rated operation current | 63 A |
| Rated excitation voltage | 195-253 V |
| Voltage type (operating voltage) | AC |
| Voltage type (excitation voltage) | AC |
| Number of contacts as a normally open contact | 4 |
| Number of contacts as normally closed contact | 0 |
| Max. incandescent lamp load | 8000 W |
| Max. load fluorescent lamp | 4700 VA |
| Max. load fluorescent lamp (Duo circuit) | 5000 VA |
| Max. load fluorescent lamp (parallel compensated) | 1700 VA |
| Slider for hand switch | Yes |
| Width in number of modular spacings | 3 |
| Built-in depth | 44 mm |
| Additional equipment possible | Yes |
| Degree of protection (IP) | IP2X |
| Width | 68 mm |
| Height | 94 mm |
| Depth | 53.4 mm |
