Description
Specifications
Main | |
| Range | AvatarOn |

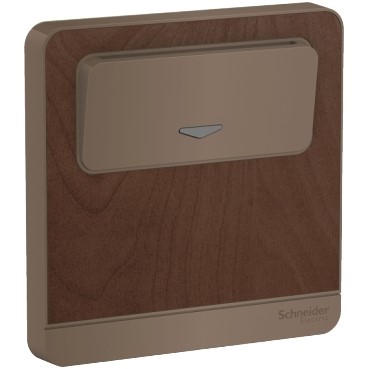

| Product or component type | Card switch |
| Device application | Hotel |
| Load type | Resistive |
| Colour tint | Wood |
Complementary | |
| Device presentation | Complete product |
| Rated current | 16 A at 250 V AC 50 Hz |
| Connections – terminals | Brass terminal |
| Clamping connection capacity | 3 x 4 mm² for solid cable(s) 3 x 4 mm² for stranded cable(s) 2 x 2.5 mm² for solid cable(s) 2 x 2.5 mm² for stranded cable(s) |
| Status LED | LED (amber) |
| Material | Polycarbonate: plastic part |
| Device mounting | Flush Surface |
| Width | 86 mm |
| Height | 86 mm |
| Depth | 43.8 mm |
| Embedding depth | 34.1 mm |
Environment | |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | 0…60 °C |
| Ambient air temperature for storage | 0…60 °C |
| Relative humidity | 0…95 % |
| Standards | IEC 60669-2-1 |
Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.4 cm |
| Package 1 Width | 8.6 cm |
| Package 1 Length | 8.6 cm |
| Package 1 Weight | 124.0 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 9.0 cm |
| Package 2 Width | 19.0 cm |
| Package 2 Length | 19.5 cm |
| Package 2 Weight | 1.042 kg |
