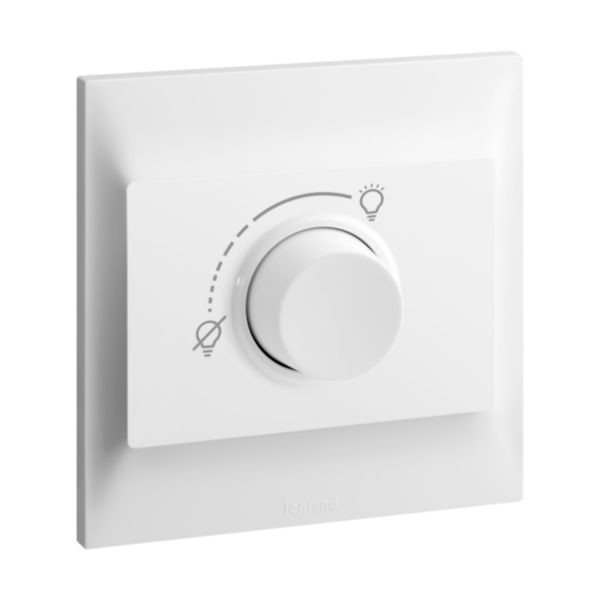

Description
Product characteristics
- 150 W, 127 V / 37W LED)
- Sold with white BELANKO S plate
- Screw-type terminals for enhanced contacts
- Marked terminals for easy identification
- Rotary shaped knob for easy grip without neutral
Recommendation / Restriction
- Recommended inside use only
The product’s benefits
Installation
- Can be retro-fitted into existing point of lighting
Usage
- Allows the dimming of enabled charges (incl. LED charges) from 10 to 100%
Advantages
- Fast and Easy install. The paint job made it simpler
- Optimized range for new builds and ideal for renovation projects
- Delivered with screws for flush & surface boxes in both plastic and metal boxes
Technical characteristics
| Assembly arrangement | Basic element |
| Method of operation | Turn/push button |
| Number of modules (module system) | 2 |
| App control via Bluetooth | No |
| Dimming phase cut-on | Yes |
| Dimming phase cut-off | Yes |
| Serial dimmer | No |
| Type of load | Universal |
| Substation input | No |
| Light value memory | No |
| Applicable with button | No |
| Applicable with movement sensor | No |
| Applicable with presence indicator | No |
| Applicable with time switch/timer | No |
| Applicable with transmission button | No |
| Applicable with an infrared button | No |
| Mounting method | Flush-mounted |
| Type of fastening | Mounting with screw |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Color | White |
| RAL-number (similar) | 9003 |
| Transparent | No |
| Suitable for degree of protection (IP) | IP40 |
| Degree of impact strength (IK) | IK02 |
| Nominal voltage | 100-240 V |
| Frequency | 50-60 Hz |
| Control voltage | 0-300 V |
| Nominal power resistive load | 5-300 W |
| Connection type | Screwed terminal |
| Cable section | 1-4 mm² |
| Device width | 86 mm |
| Device height | 86 mm |
| Device depth | 58.1 mm |
| Min. depth of built-in installation box | 40 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Built-in depth | 33 mm |
| Operating/setting temperature | 0-35 °C |
| Storage temperature | -10-70 °C |
| Voltage type | AC |
| Mandatory neutral | No |
| Terminal marking indication | Yes |
| Stress test conformity (1000V) | No |
| Antimicrobial treatment | No |
| Terminals capacity | 1-4 mm² |
| Cable nature for connection | Flexible or rigid |
