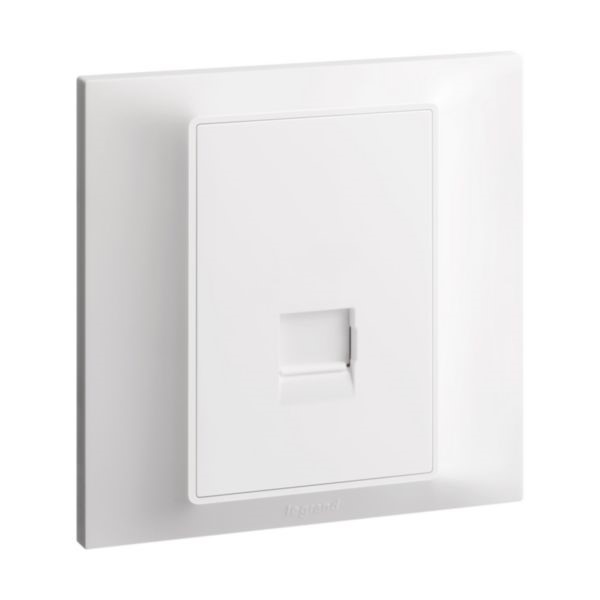

Description
Product characteristics
- British standard
- Sold with white BELANKO S plate
- Marked terminals for easy identification
Recommendation / Restriction
- Recommended inside use only
The product’s benefits
Advantages
- Delivered with its protective shell against paint and dust during the installation phase
- Optimized range for new builds and ideal for renovation projects
- Delivered with screws for flush & surface boxes in both plastic and metal boxes
Technical characteristics
| Surface mounting | No |
| Duct installation | No |
| Floor box/subfloor mounted | No |
| Type of fastening | Screwing |
| Assembly arrangement | Basic element |
| Type of connector | RJ45 8(4) |
| Color | White |
| RAL-number | 9003 |
| Separate earthing connection | No |
| With label space | Yes |
| Mounting method shielding connection | Cable tie |
| With dust cover | Yes |
| Degree of protection (IP) | IP20 |
| Device width | 86 mm |
| Device height | 86 mm |
| Device depth | 23.4 mm |
| Built-in depth | 14.4 mm |
| Degree of impact strength (IK) | IK04 |
| Operating/setting temperature | -5-50 °C |
| Storage temperature | -10-70 °C |
| Terminal marking indication | Yes |
| Halogen-free | Yes |
| Antimicrobial treatment | No |
| Mounting method | Flush-mounted |
| Cable support | Not applicable |
