Description
Product characteristics
- 16AX, 250V
- Sold with white BELANKO S plate
- Screw-type terminals for enhanced contacts
- Marked terminals for easy identification
Recommendation / Restriction
- Recommended inside use only
The product’s benefits
Installation

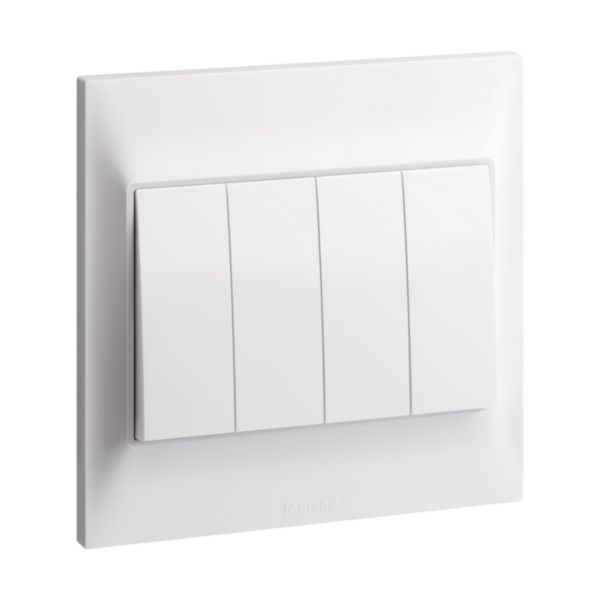

- Practical 4-point lighting control on a one-gang box. Quick & Easy plate clipping system
Usage
- No accessible electrical contact under the rockers. Practical 4-point lighting control on a single plate.
Advantages
- Innovative all-in-one face plate & rocker. The rockers are always perfectly aligned. Fast and Easy install. The paint job made it simpler.
- Optimized range for new builds and ideal for renovation projects
- Delivered with screws for flush & surface boxes in both plastic and metal boxes
Technical characteristics
| Wiring system | Series switch |
| Method of operation | Rocker/button |
| Assembly arrangement | Basic element with full cover plate |
| Push button switch | No |
| Number of rockers | 4 |
| Mounting method | Flush-mounted |
| Type of fastening | Screw mounting |
| With mounting plate | Yes |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Antimicrobial treatment | No |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Color | White |
| RAL-number (similar) | 9003 |
| Color of the switch operator | White |
| Label space/information surface | Yes |
| Illumination | No |
| Suitable for degree of protection (IP) | IP20 |
| Degree of impact strength (IK) | IK04 |
| Nominal voltage | 250 V |
| Rated current | 16 A |
| Feedback-signal contact | No |
| Connection type | Screwed terminal |
| Heating switch | No |
| Washing machine switch | No |
| Device width | 86 mm |
| Device height | 86 mm |
| Device depth | 33.6 mm |
| Built-in depth | 20.5 mm |
| Min. depth of built-in installation box | 35 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Operating/setting temperature | -5-50 °C |
| Storage temperature | -10-70 °C |
| Voltage type | AC |
| Mandatory neutral | Yes |
| Terminal marking indication | Yes |
| Terminals capacity | 1-4 mm² |
| Cable nature for connection | Flexible or rigid |
| Cable section | 1-4 mm² |
617601 Belanko S 1 gang 2-way switch - 16AX - White
