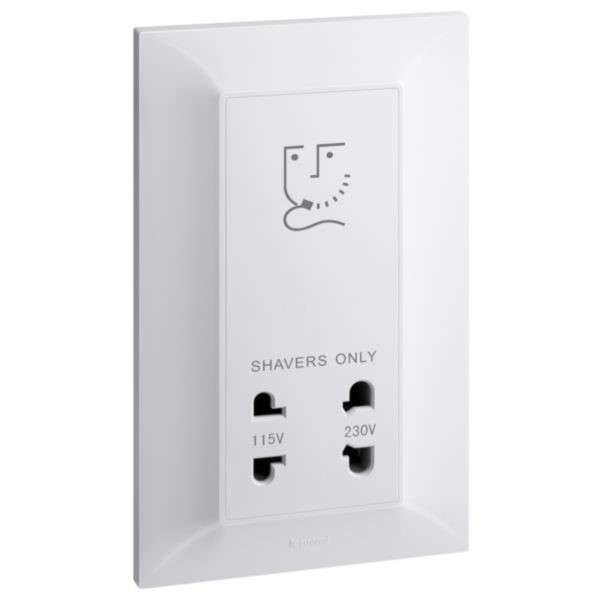

Description
Product characteristics
- 2P, 127V/250V (20VA)
- All-in-one product
- Marked terminals for easy identification
- Screw-type terminals for enhanced contacts
- Glossy finish
Recommendation / Restriction
- Recommended inside use only
The product’s benefits
Installation
- Tool-less Installation
Usage
- Aesthetic finish
Advantages
- Delivered with its protective shell against paint and dust during the installation phase
- Optimized accessory for new builds and ideal for renovation projects
- Delivered with screws for flush & surface boxes in both plastic and metal boxes
Technical characteristics
| Assembly arrangement | Basic element |
| Mounting method | Flush-mounted |
| With hinged lid | No |
| Voltage reversible | No |
| Nominal voltage low value | 110 V |
| Nominal voltage high-value | 230 V |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Color | White |
| RAL-number (similar) | 9003 |
| Transparent | No |
| Device width | 86 mm |
| Device height | 146 mm |
| Device depth | 49 mm |
| With built-in installation box | No |
| Min. depth of built-in installation box | 45 mm |
| Built-in depth | 40 mm |
| Degree of impact strength (IK) | IK04 |
| Degree of protection (IP) | IP20 |
| Operating/setting temperature | -5-50 °C |
| Storage temperature | -10-70 °C |
| Voltage type | AC |
| Frequency | 50-60 Hz |
| Terminal marking indication | Yes |
| Antimicrobial treatment | No |
| Connection type | Blade terminal |
| Terminals capacity | 1-4 mm² |
| Cable nature for connection | Flexible or rigid |
| Label space/information surface | Yes |
