Description
Product characteristics

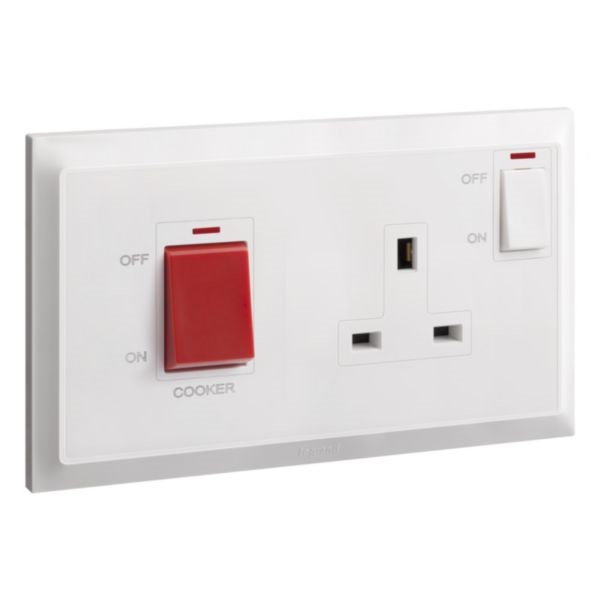

- British Standard, 13A, 250V + 45A Switch
- Sold with white BELANKO S plate
- Screw-type terminals for enhanced contacts
- Marked terminals for easy identification
- Red Rocker with red light indicator
Recommendation / Restriction
- Recommended inside use only
The product’s benefits
Installation
- Quick & Easy plate clipping system
Usage
- Complies with British Standards certifications for heavy loads. Fitted with safety shutters to maximize child protection
Advantages
- Fast and Easy install. The paint job was made simpler thanks to the protective shell.
- Optimized range for new builds and ideal for renovation projects
- Delivered with screws for flush & surface boxes in both plastic and metal boxes
Technical characteristics
| Model | British Standard |
| Protective contact | Round |
| Number of active contacts (flat) | 2 |
| With complementary luminous signal | No |
| Number of ports USB-A | 0 |
| Number of ports USB-C | 0 |
| Number of units | 2 |
| Number of socket outlets switchable | 1 |
| Number of phases | 1 |
| Connection type | Screwed terminal |
| With hinged lid | No |
| With enhanced contact protection | Yes |
| Label space/information surface | Yes |
| Color | White |
| RAL-number (similar) | 9003 |
| Metallic colour | No |
| Transparent | No |
| Lockable | No |
| Eject-mechanism | No |
| Insulated mounting | No |
| With function lighting | No |
| With orientation lighting | No |
| Over-voltage protection | No |
| Fault current protection | No |
| With miniature fuse | No |
| Special power supply | No special power supply |
| Mounting method | Flush-mounted |
| Type of fastening | Mounting with screw |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Antimicrobial treatment | No |
| With an on/off switch | Yes |
| Nominal current | 13 A |
| Nominal voltage | 250 V |
| Suitable for degree of protection (IP) | IP20 |
| Degree of impact strength (IK) | IK04 |
| Device width | 146 mm |
| Device height | 86 mm |
| Device depth | 33.6 mm |
| Min. depth of built-in installation box | 35 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| IFTTT support available | No |
| With Wi-Fi signal repeater | No |
| With built-in Bluetooth speaker | No |
| Built-in depth | 20.7 mm |
| Operating/setting temperature | -5-50 °C |
| Storage temperature | -10-70 °C |
| Voltage type | AC |
| Power Delivery | No |
| Terminal marking indication | Yes |
| Prewired | No |
| Terminals capacity | 1-4 mm² |
| Cable nature for connection | Flexible or rigid |
| Cable section | 1-4 mm² |
| Cable support | Not applicable |
| Cover | Full cover plate |
| Connected object | No |
