Main | |

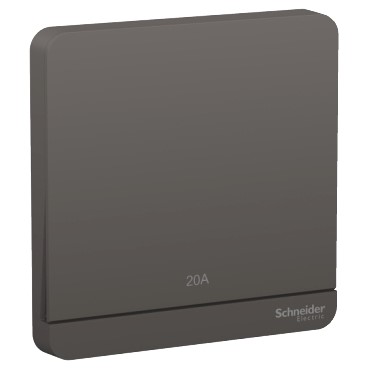

| Product or component type | Switch |
| Device application | Control |
| load type | Incandescent lamp Serial boost load (SBL) Motor Fluorescent lamps Resistive |
| Colour tint | Dark grey |
| Colour tint | Dark grey |
Complementary | |
| Device presentation | Complete product |
| Rated current | 20 A at 250 V AC 50/60 Hz |
| Switch function | 2-pole 1-way |
| Number of gangs | 1 gang |
| Number of rocker | 1 |
| Clamping connection capacity | 3 x 2.5 mm² for stranded cable(s) 1 x 4 mm² for stranded cable(s) 1 x 6 mm² for stranded cable(s) |
| Connections – terminals | Brass terminal |
| Local signalling | On: LED indicator, LED (amber) |
| Material | Polycarbonate: grid plate Polycarbonate: base Polycarbonate: dolly |
| Device mounting | Flush |
| Width | 86 mm |
| Height | 86 mm |
| Depth | 32 mm |
Environment | |
| IP degree of protection | IP20 |
| Maximum ambient air temperature for operation | 45 °C |
| Operating altitude | 2000 m |
| Relative humidity | 0…95 % |
| Standards | SS 227-1 BS EN 60669-1 IEC 60669-1 MS IEC 60669-1 |
| Environmental characteristic | UV resistant |
Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.2 cm |
| Package 1 Width | 8.5 cm |
| Package 1 Length | 8.5 cm |
| Package 1 Weight | 117.0 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 9.5 cm |
| Package 2 Width | 19.0 cm |
| Package 2 Length | 19.5 cm |
| Package 2 Weight | 1.17 kg |
