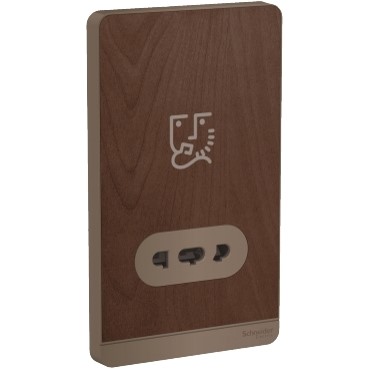

E83T727V_WD AvatarOn, shaver socket, 115/240V, 20VA, Wood

Original price was: ₦64,950.00.Current price is: ₦59,650.00.

Schneider Electric AvatarOn E83T727V_WD in color wood is a universal vertical shaver socket. The input voltage of this shaver socket is 240V, output voltage 115V/240V and rated operating power 20VA. The socket is 86 mm in width, 147 mm in height and 50 mm in depth. Surface mounting is the mounting type of this shaver socket. And its connection terminal is pillar terminal. Besides, the PC (polycarbonate) and brass material makes the device as resistant as possible. IP21 level makes the shaver socket as reliable and resistant as possible. This socket is UV resistant, preventing unintended failure as a result of deterioration. The standard of IEC 61558-2-5 is well satisfied.

1000 in stock
Add to Wishlist
Add to Wishlist
Category: Tag: Brand:

Description

Specifications

Main

RangeAvatarOn
Product or component typeShaver socket
Installation directionVertical
Input voltage240 V AC 50/60 Hz
Output voltage115 V AC 50/60 Hz
240 V AC 50/60 Hz
MaterialPolycarbonate: grid plate
Polycarbonate: surround
Polycarbonate: bracket
Brass: terminals
Colour tintWood



Complementary

Device presentationComplete product
Device mountingSurface
Cable cross section1…2.5 mm²
Rated operational power in VA20 VA
Connections – terminalsPillar terminals
Width86 mm
Height147 mm
Depth50 mm



Environment

Ambient air temperature for operation-5…45 °C
Ambient air temperature for storage0…60 °C
Relative humidity0…95 %
Environmental characteristicUV resistant
Operating altitude2000 m
IP degree of protectionIP21
StandardsIEC 61558-2-5



Packing Units

Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height6.3 cm
Package 1 Width9.4 cm
Package 1 Length15.3 cm
Package 1 Weight154.0 g
