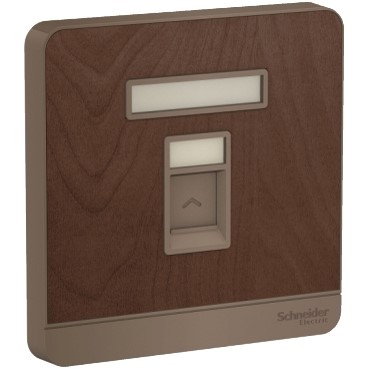

E8331RJS5_WD AvatarOn, data socket, RJ45, cat5e, shuttered, Wood

Original price was: ₦19,760.00.Current price is: ₦16,170.00.

Schneider Electric AvatarOn RJ45 5e data socket E8331RJS5_WD is a complete product in color wood for data communication. Its matching mounting box can be recessed into the surface of the wall with flush type. It takes your safety into consideration all the time as it is shuttered. Being made of polycarbonate material, this data socket is quite reliable and resistant. This data socket comes with 1 gang. By satisfying the ASTMD4566-98, TIA/EIA-568-B.2-1 standard, It is 86 mm in width. 86 mm in height. 31 mm in depth. AvatarOn offers six fashionable, classic appearances, letting your home’s details change, just like the changes in your colorful life. Unique, patented technology and exquisite manufacturing ensure comfortable operation, and the easy-mount design allows you to change the faceplates as quickly and easily as you wish.

1000 in stock
Add to Wishlist
Add to Wishlist
Category: Tag: Brand:

Description

Specifications

Main

Product or component typeData socket
Device applicationCommunication
Socket additional informationShuttered
Communication network categoryData: 5e
Number of gangs1 gang
Colour tintWood
Main colour tintWood



Complementary

Device presentationComplete product
Device mountingFlush
Surface
Data socket typeRJ45
Rated current1.5 A
MaterialPolycarbonate: plastic part
Contacts materialHousing: PC
Contact: phosphor bronze with gold plating
Contact resistance1 µOhm
Insulation resistance>= 200 MOhm
Minimum return loss23 dB
Colour tintWood
IP degree of protectionIP20
Width86 mm
Height86 mm
Depth31 mm



Environment

Dielectric strength1000 V for 60 s at 60 Hz
AWG gaugeAWG 26…AWG 22 (4 twisted pair cables)
Environmental characteristicNo UV resistant
Maximum ambient air temperature for operation35 °C
Relative humidity0…95 %
StandardsASTMD4566-98
TIA/EIA-568-B.2-1



Packing Units

Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height4.1 cm
Package 1 Width8.6 cm
Package 1 Length8.6 cm
Package 1 Weight59 g
Unit Type of Package 2BB1
Number of Units in Package 210
Package 2 Height9.5 cm
Package 2 Width19 cm
Package 2 Length19.5 cm
Package 2 Weight642 g
Unit Type of Package 3CAR
Number of Units in Package 360
Package 3 Height21 cm
Package 3 Width30 cm
Package 3 Length39.5 cm
Package 3 Weight4.352 kg
