Description
Specifications
Main | |

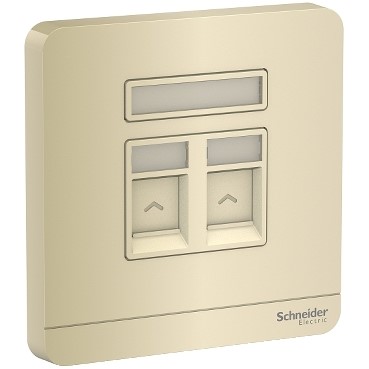

| Product or component type | Telephone socket |
| Device application | Communication |
| Socket additional information | Shuttered |
| Number of gangs | 2 gangs |
| Material | PC (polycarbonate): housing Polycarbonate: plastic part |
| Colour tint | Wine gold |
| Colour tint | Wine gold |
Complementary | |
| Device presentation | Complete product |
| Device mounting | Surface Flush |
| Communication network category | Voice: 3 |
| Rated current | 1.5 A |
| Contacts material | Contact: phosphor bronze with gold plating IDC contact: phosphor bronze with nickel plating |
| Contact resistance | 1 µOhm |
| Insulation resistance | >= 200 MOhm |
| Minimum return loss | 23 dB |
| Width | 86 mm |
| Height | 86 mm |
| Depth | 40.7 mm |
Environment | |
| Dielectric strength | 1000 V for 60 s at 60 Hz |
| AWG gauge | AWG 26…AWG 22 (4 twisted pair cables) |
| Environmental characteristic | UV resistant |
| Maximum ambient air temperature for operation | 45 °C |
| Standards | TIA/EIA-568-B.2-1 ASTMD4566-98 |
| Relative humidity | 0…95 % |
| IP degree of protection | IP20 |
Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.1 cm |
| Package 1 Width | 8.6 cm |
| Package 1 Length | 8.6 cm |
| Package 1 Weight | 72.0 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 9.5 cm |
| Package 2 Width | 19.0 cm |
| Package 2 Length | 19.5 cm |
| Package 2 Weight | 770.0 g |
