Description

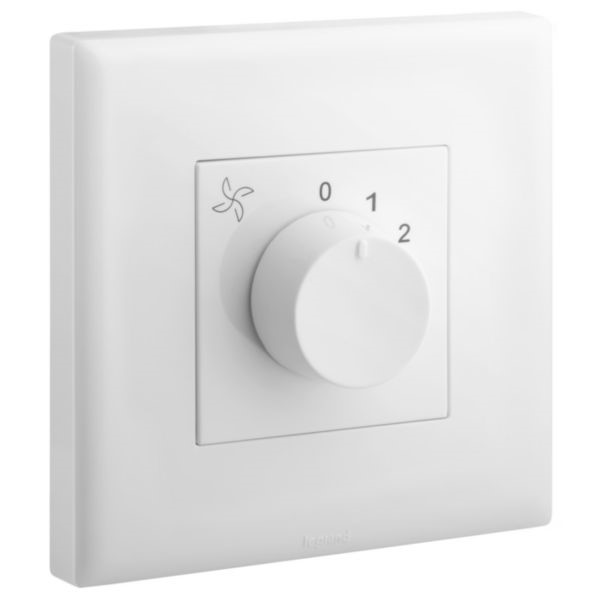

Product characteristics
- 100W (FAN), 200 – 240 V, 50 – 60hz
- ELOE is sold as a complete set under one cat number
- Screw-type terminals for secured & enhanced contacts
- Marked terminals for easy identification
- Glossy white finish
Recommendation / Restriction
- Recommended inside use only
The product’s benefits
Installation
- Quick and Easy plate clipping system
Usage
- Allows to select the desired fan speed
Advantages
- Optimized range for new builds and ideal for renovation projects
- Delivered with screws for flush & surface boxes in both plastic and metal boxes
- A squarish shape designed with a full rocker plate aesthetic
Technical characteristics
| Assembly arrangement | Basic element with adapter plate |
| Method of operation | Turn button |
| App control via Bluetooth | No |
| Dimming phase cut-on | No |
| Dimming phase cut-off | No |
| Serial dimmer | No |
| Type of load | Other |
| Substation input | No |
| Light value memory | No |
| Applicable with button | No |
| Applicable with movement sensor | No |
| Applicable with presence indicator | No |
| Applicable with time switch/timer | No |
| Applicable with transmission button | Yes |
| Applicable with an infrared button | No |
| Mounting method | Built-in installation |
| Type of fastening | Mounting with screw |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Surface protection | Other |
| Surface finishing | Glossy |
| Color | White |
| Transparent | No |
| Suitable for degree of protection (IP) | IP20 |
| Degree of impact strength (IK) | IK04 |
| Nominal voltage | 200-240 V |
| Frequency | 50-60 Hz |
| Control voltage | 200-240 V |
| Connection type | Screwed terminal |
| Cable section | 1-2.5 mm² |
| Device width | 86 mm |
| Device height | 55.8 mm |
| Device depth | 30.7 mm |
| Min. depth of built-in installation box | 35 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Built-in depth | 30.7 mm |
| Operating/setting temperature | 0-35 °C |
| Storage temperature | -10-70 °C |
| Voltage type | AC |
| Mandatory neutral | No |
| Terminal marking indication | Yes |
| Antimicrobial treatment | No |
| Terminals capacity | 1-2.5 mm² |
| Cable nature for connection | Flexible or rigid |
